We manufacture CW coils with no constraint in Length or Height. As standard all our CW Coils are made of Copper tubes with fin option of Al, Pre-coated or Hydrophylic Al, Copper fins. These CW Coils can be used within Air Handling Units, Fan Coil units or any other HVAC Equipment’s that needs CW Coils.

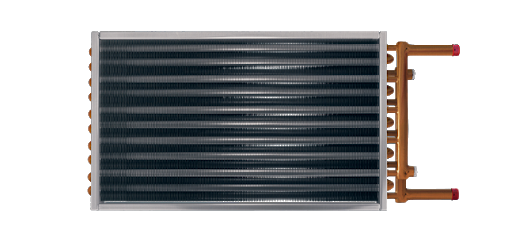

We manufacture HW coils with no constraint in Length or Height. As standard all our HW Coils are made of Copper tubes with fin option of Al, Pre-coated or Hydrophylic Al, Copper fins. These HW Coils can be used within Air Handling Units, Fan Coil units or any other HVAC Equipment’s that needs HW Coils.

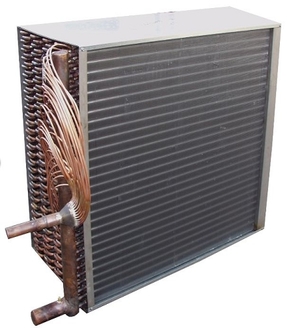

Our DX Coils can be manufactured with plain copper tubes (5mm, 7mm, 9.52 mm, 12.7 mm & 15.87 mm) or with Inner Grooved Copper tubes in tube dia. of 5 mm, 7 mm, 9.52 mm to have increased efficiency & performance. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available. These coils can be used for any refrigerant based application for an HVAC Equipment.

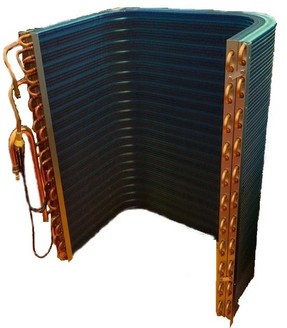

For any type of condensing application be it Chiller , Package Unit, Condensing unit, etc, we manufacture condenser coils with plain copper tubes (5mm, 7mm, 9.52 mm, 12.7 mm & 15.87 mm) or with Inner Grooved Copper tubes in tube dia. of 5 mm, 7 mm, 9.52 mm to have increased efficiency & performance. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.

We manufacture the Evaporator coils that can be used in any Evaporator side use of an equipment with plain copper tubes (5mm, 7mm, 9.52 mm, 12.7 mm & 15.87 mm) or with Inner Grooved Copper tubes in tube dia. of 5 mm, 7 mm, 9.52 mm to have increased efficiency & performance. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.

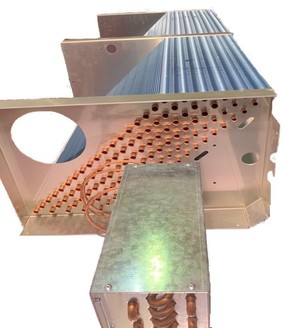

Small & large sized coils for use in Fan Coil unit either water based of Refrigerant based with or with out additional sheet metal work can be manufactured in large quantities as per customer drawings or based on design to build. Tube Dia of 5 mm, 7 mm, 9.52 mm, 12.7 mm is most commonly used in FCU Coils. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.

Steam based coils for special applications can be manufactured either with 12.7 m or 15.87 mm tube dia. with either Copper Header or Mild Steel Header. These steam coils are manufactured with special tubes to withstand high steam pressure & also tested at High pressure under water. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.

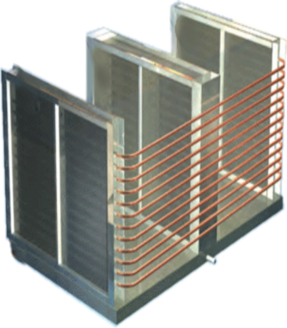

Run Around coils for Heat Recovery application can be designed & manufactured with Tube dia. Of 9.52 mm, 12.7 mm or with 15.87 mm. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.

These days the concept of reversible coils is becoming popular & with our expertise we can build & design these type of coils wherein the same coils can function as Condenser & Evaporator or one coil to function to be used for Chilled Water or Hot Water Application. Tube di. Of 5 mm, 7 mm, 9.52 mm, 12.7 mm & 15.87 mm can be used. Fin Option of Al, Pre-coated or Hydrophylic Al, Copper fins is available.
